Complete kit surrounding Area View for VW Tiguan BW2, BJ2, 2.119,00 €

Das sagen unsere Kunden

Description

Complete set to retrofit the original VW environment view Area View for VW Tiguan allspace BW2, BJ2
4 cameras (grille, in both exterior mirrors, tailgate) allow a complete picture of the environment

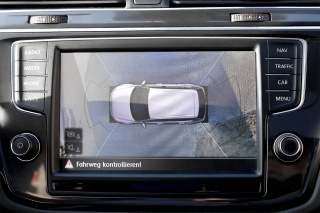

Camera views (front, rear, side or birdview) via display as full or split screen
Obstacle detection and 3D birdview perspectives
17 different virtual camera positions
"Trailer" function of the reversing camera (graphical representation of the ball head)
"Offroad" function of the front camera (stones, stumps, potholes - clearly visible in the track)
Dynamic auxiliary lines and fields, which change according to the steering angle
This item is also suitable for retrofitting Trailer Assist

Selectable options:

    PR No. 2JB, 2JL, 2JP; Version: Left-hand drive (PR No.: L0L); Until model year 2021 (sales type BW2).
    PR No. 2J2, 2J3; Version: Left-hand drive (PR No.: L0L); Until model year 2021 (sales type BW2)
    PR No. 2JR; Version: Left-hand drive (PR No.: L0L); Until model year 2021 (sales type BW2)
    PR No. 2JB, 2JL, 2JP; Version: Right-hand drive (PR No.: L0R); Until model year 2021 (sales type BW2)
    PR No. 2J2, 2J3; Version: Right-hand drive (PR No.: L0R); Until model year 2021 (sales type BW2)
    PR No. 2JR; Version: Right-hand drive (PR No.: L0R); Until model year 2021 (sales type BW2)
    PR No. 2J0, 2J4; Version: Left-hand drive (PR No.: L0L); From model year 2022 (sales type BJ2)
    PR No. 2JF, 2JI; version: left-hand drive (PR No.: L0L); from model year 2022 (sales type BJ2)
    PR No. 2JR, 2JX; Version: Left-hand drive (PR No.: L0L); from model year 2022 (sales type BJ2)
    PR No. 2J0, 2J4; version: right-hand drive (PR No.: L0R); from model year 2022 (sales type BJ2)
    PR No. 2JF, 2JI; version: right-hand drive (PR No.: L0R); from model year 2022 (sales type BJ2)
    PR No. 2JR, 2JX; version: right-hand drive (PR No.: L0R); from model year 2022 (sales type BJ2)

Scope of Delivery:

cable set
control part
2 x camera
2 x outside mirrors incl. camera
small parts
coding dongle

Suitable for radio / navigation:

Navigation device high (PR-No.: 7UG)
Navigation device standard (PR-No.: 7UF)
Optionsinfotainment (PR-No.: 8AR)
Composition Media (PR-No.: I8F) in conjunction with PR-No.: 9WT or 9S8 or QV3

Note:

3D bird's-eye view only in combination with the Discover Pro
The camera has a connection to the wiper water system, the required parts are not included
On vehicles without parking aid (PR no. 7X0), the center console switch unit must be replaced
If the vehicle already has a rear view camera ex factory, this must be exchanged for the rear view camera included in the scope of delivery.

Additional Notes:

If you are unable to carry out the activation yourself, or if it is an SFD2 vehicle (more information can be found here) for which activation is mandatory, we offer an optional one-off remote activation service. This can be booked on request. This is a one-off service. If coding is lost, for example due to a software update or other interventions, the activation fees are due again. If no remote diagnostic interface or coding dongle is listed in the scope of delivery of the article, any KUFATEC dongle or our KURDIS KUFATEC remote diagnostic interface article number 70000 is also required for activation
We are happy to offer you installation including activation as a full service in our master workshop in Zirndorf near Nuremberg. Please send us an inquiry stating your chassis number
